Interface
|
Preview
|
1/8
|
|
Video
|
Codec
|
H.265
|
|
Monitor quality
|
VGA(1080P at most);HDMI(1080P at most)
|
|
Preview ability
|
4*5M-N@20fps（6 in 1）
|
|
Encode ability
|
4*5M-N@20fps（6 in 1）
|
|
Decode ability
|
2*5M-N@20fps（6 in 1）
|
|
Multi-mode
|
Analog：4*5M-N
|
|
input
|
network：16*1080P;8*5M
|
|
Digital to analog conversion
|
Unsupport（except hybrid mode）
|
|
Motion Detection
|
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
|
|
Audio
|
Audio compression
|
G.711A
|
|
Intercom
|
support
|
|
Record & playback
|
Record mode
|
manual>alarm>motion detection>timing
|
|
Local Playback
|
2ch(analog input mode)
|
|
Search mode
|
Search by time, calendar, event, channel
|
|
Storage & backup
|
Video storage
|
HDD, network
|
|
Backup mode
|
Network, USB hard disk, USB burner, SATA burner
|
|
External Interface
|
Video input
|
8ch BNC
|
|
Video output
|
1ch VGA, 1ch HDMI
|
|
Loop Vout
|
N/A
|
|
Audio I/O
|
1/4
|
|
Alarm I/O
|
0/0
|
|
Network interface
|
RJ45 10M/100M self-adaption
|
|
PTZ control
|
1*RS485, Support kinds of PTZ protocols
|
|
USB
|
2* USB 2.0 ports
|
|
HDD
|
1*SATA ports (Max 6TB/per)
|
|
Wireless
|
3G, WIFI (extend via USB)
|
|
General
|
Power supply
|
12V/2A
|
|
Power Consumption
|
<15W (without HDD)
|
|
Working environment
|
Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa
|
|
Dimension
|
135mm*82mm
|
|
Weight
|
105g
|
|
Camera
|
Image Sensor
|
1/2.7 CMOS, XM350+K03, 5.0MP
|
|
Video Resolution
|
5 Megapixel (2592*1944)
|
|
Signal System
|
PAL/NTSC
|
|
Minimum illumination
|
Olux (When IR ON)
|
|
Video Output
|
1. 0vp-p 75
|
|
Lens
|
3. 6mm
|
|
waterproof
|
IP66
|
|
Number of Infrared LEDs
|
18
|
|
Day and Night Function
|
Built-in IR-CUT
|
|
Night Vision Distance
|
Up to 66ft/20m
|
|
Noise-signal Ratio
|
≤41db
|
|
Operating Power
|
DC12V?10%
|
|
Consumption
|
<5W
|
|
Packing size
|
375mm*155mm*285mm
|
|
Carton size
|
52.5*39*31.5CM 3kits/carton
|

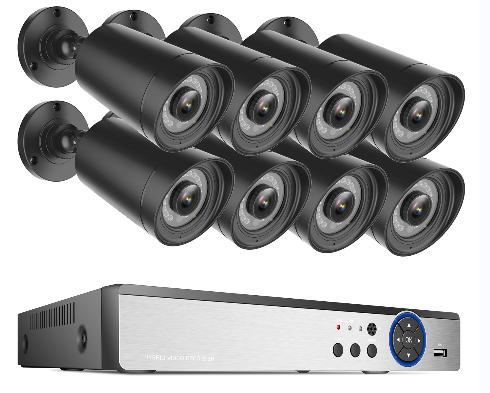

AHD Camera DVR & KITS
