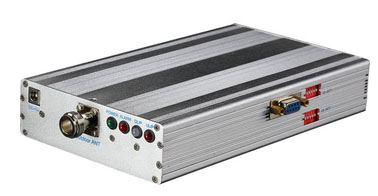

3G WCDMA UMTS 2100MHz Band Selective Mobile Signal Booster
|
ELECTRICAL
|
|
|
UPLINK
|
DOWNLINK
|
|
Frequency Range
|
1920 ~ 1980MHz
|
2110 ~ 2170MHz
|
|
Output Power
|
20dBm
|
20dBm
|
|
System Gain
|
75dB±2dB
|
|
ATT Range in 1dB Step
|
30dB
|
|
Noise Figure
|
≤5dB
|
|
Pass Band Ripple
|
≤2dB/3.84MHz
|
|
Group Delay
|
≤5μs
|
|
Automatic Level Control
|
Within 2dB or shut off
|
|
VSWR
|
≤1.5
|
|
Spurious Emission
|
Comply to 3GPP standard
|
|
IMD3
|
|
Monitoring And Alarming* (optional)
|
Door, Temperature, Power Supply, Output Power, etc
|
|
MECHANICAL SPECIFICATION
|
|
Dimensions Approx.
|
200×120×40mm
|
|
Weight Approx.
|
2.5kg
|
|
Storage
|
-40 ~ +85°C
|
|
Operating Temperature
|
-25 ~ +55°C(indoor)
|
|
Humidity
|
≤95%
|
|
System Impedance
|
50Ω
|
