Location：Home > Products > smart home solution

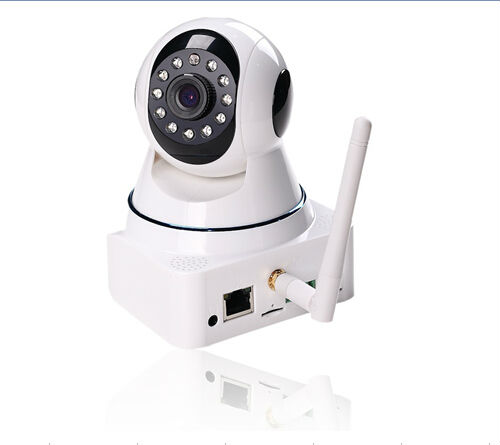

Name：Smart home IPC

Item：GW-IP203PT

Plug&Play High Definition 720P

supporting ONVIFI 2.0 Standard

PnP Series NEW HD WiFi IR Indoor P/T IP Camera

H.264 CMOS HD Megapixel

WiFi

IR-Cut
Free DDNS

Two-way audio

Support 32G Micro SD Card

Pan: 355°/Tilt: 120°

Key Features

Parameter

Function

Application

Product Series

Plug&Play High Definition 720P

supporting ONVIFI 2.0 Standard

PnP Series NEW HD WiFi IR Indoor P/T IP Camera

H.264 CMOS HD Megapixel

WiFi

IR-Cut
Free DDNS

Two-way audio

Support 32G Micro SD Card

Pan: 355°/Tilt: 120°

<

System	System Security	Level 3 account, Password, Multilayer user rights management
	P2P\DDNS	plug-and-play P2P, DDNS supported
	Video Preview	Computer Browser monitoring，Client monitoring, I Phone, Android smart phone monitoring supported. Remote playback supported
	Record storage	Timing record, Photo alarm, Alarm record， Support 32GB external TF card
Inner Core	operating system	Embedded LINUX operating system
Video	Video compression	Double H.264 Main Line+MJPG three streams.Streams can be controlled.
		Monitoring via mobile and computer simultaneously without interference.H.264 Main Line uses less flow and with better picture than H.264B

	Image sensor	CMOS , 1MP
	Video frame rate	Main Stream of H.264：1~25fps，Sub Stream of H.264：1-30fps
	Resolution	H.264 video coding,Main Stream:720P(1280720)/960P（1280960）
	Resolution	Sub Stream：VGA（640360）QVGA(320240)
	Adjustment of image	Adjustable lightness, contrast, tone and saturation
	Adjustment of image	Digital zoom supported
	Night vision effect	Clear vision with IR-Cut, Auto Day&Night, IR LED:￠5X11 PCS
	Night vision effect	IR range: 5—10 meters
	Lens	3.6mm/6mm/8mm lens
Audio	Audio compression	ADPCM/G.711/ G.716 supported
Audio	Input/output	two-way audio function，1 CH linear (with internal MIC) input，1CH linear output, output with internal loudspeaker
Alarm alert	Alarm detecting	Alarm detecting and external GPIO alarm supported
Alarm alert	Alarm signal notification	E-mail 、FTP alarm，alarming, photo catching and video recording supported
Network	Ethernet	10Base-T/100Base-TX；
Network	Protocol	DDNS、TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，NTP，UPNP，RTSP ect
Others	Wireless Protocol	Wife,802.11b/g/n,
	Wireless Protocol	Support WPS one key set-up and AP Mode Monitoring
	Online Users	Support 5 Users Online Watching
	IP Address	Static/Dynamic IP Address
	Case	Plastic/White
	Environment	Indoor
	Power Consumption	DC5V 2A
	Working Temperature	-10~50°C

【Print】 2014/12/4 17:42:46
